Arcona 50

The New Flagship

View image gallery

The First by Jeppesen & Pons

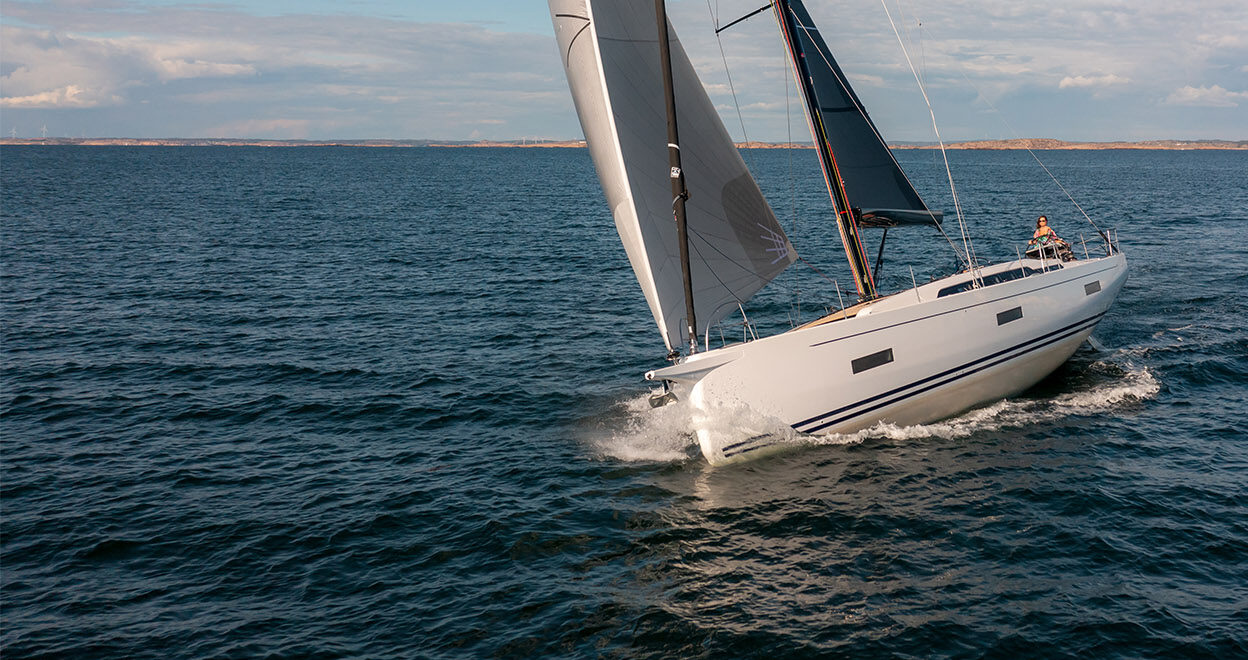

Introducing the Arcona 50, the first model designed by Jeppesen & Pons, and the new flagship of the Arcona fleet. This captivating 50ft performance cruiser marks a step change for Arcona Yachts with a new design collaboration and many new design features.

With over 6000 yachts on the water and a ¾ ton cup winning race pedigree, Principal Designer, Niels Jeppesen, and Yacht Designer & Naval Architect, Ariadna Pons, bring a wealth of experience to Arcona Yachts.

The brief for Jeppesen & Pons’ first Arcona was to design a 50-foot performance cruiser that can be easily handled by two people, while simultaneously delivering in terms of cruising comfort and sailing performance, in true Arcona style. Created to go further, this yacht forges ahead in all design aspects, setting a new standard to meet the high demands of our customers, whether it’s their ambition to go cruising the Stockholm Archipelago, push it on the racecourse or cross an ocean.

GO FURTHER WITH THE ARCONA 50

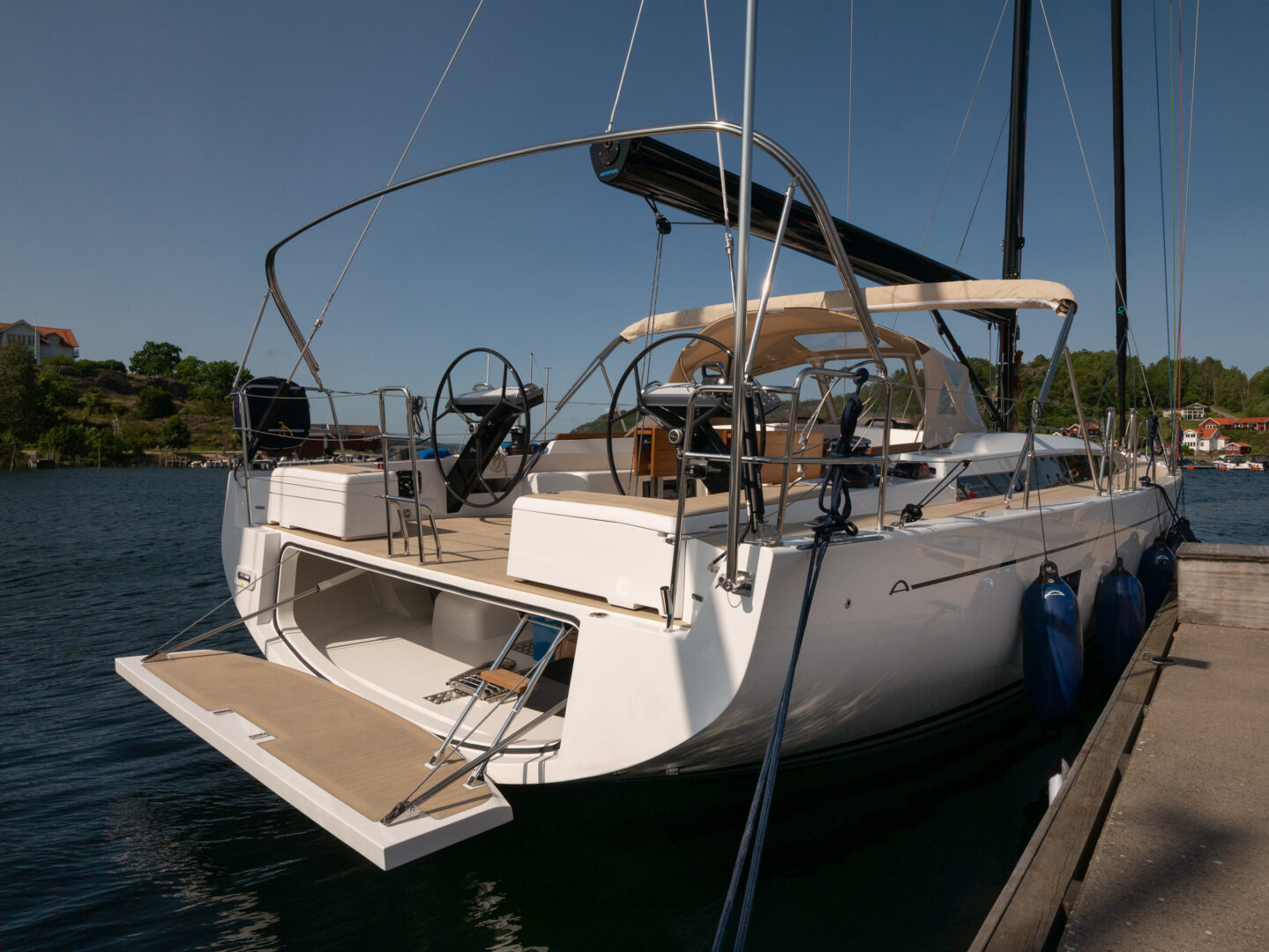

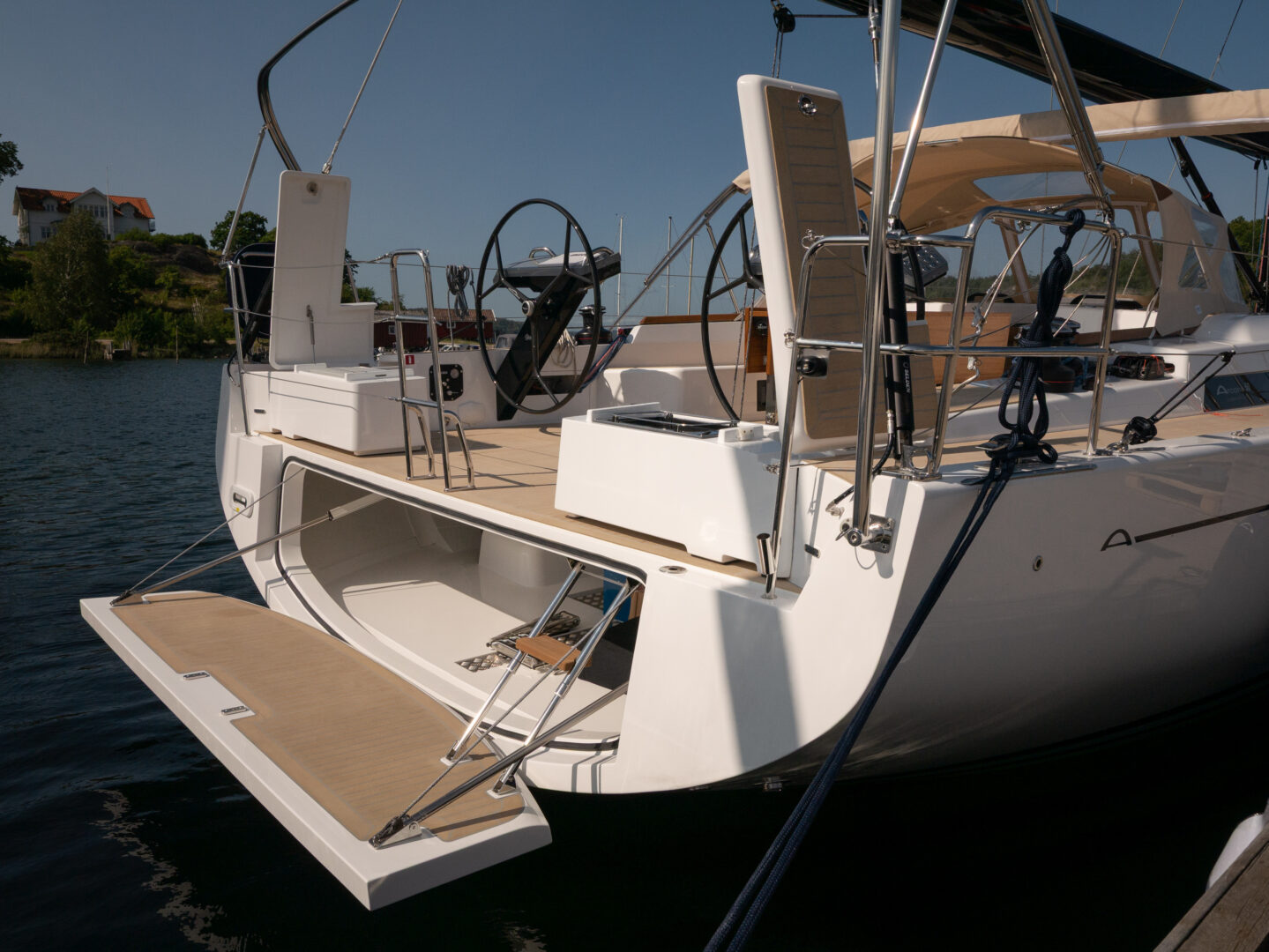

The Arcona 50 is ideal for safe and comfortable long distance performance cruising. In a first for Arcona, this new flagship has twin rudders, with aluminium rudder stocks as a standard, providing more control in the water. Another first for Arcona is the addition of a dinghy garage. Watertight composite bulkheads separate the accommodation from both the bow sail locker and the dinghy garage.

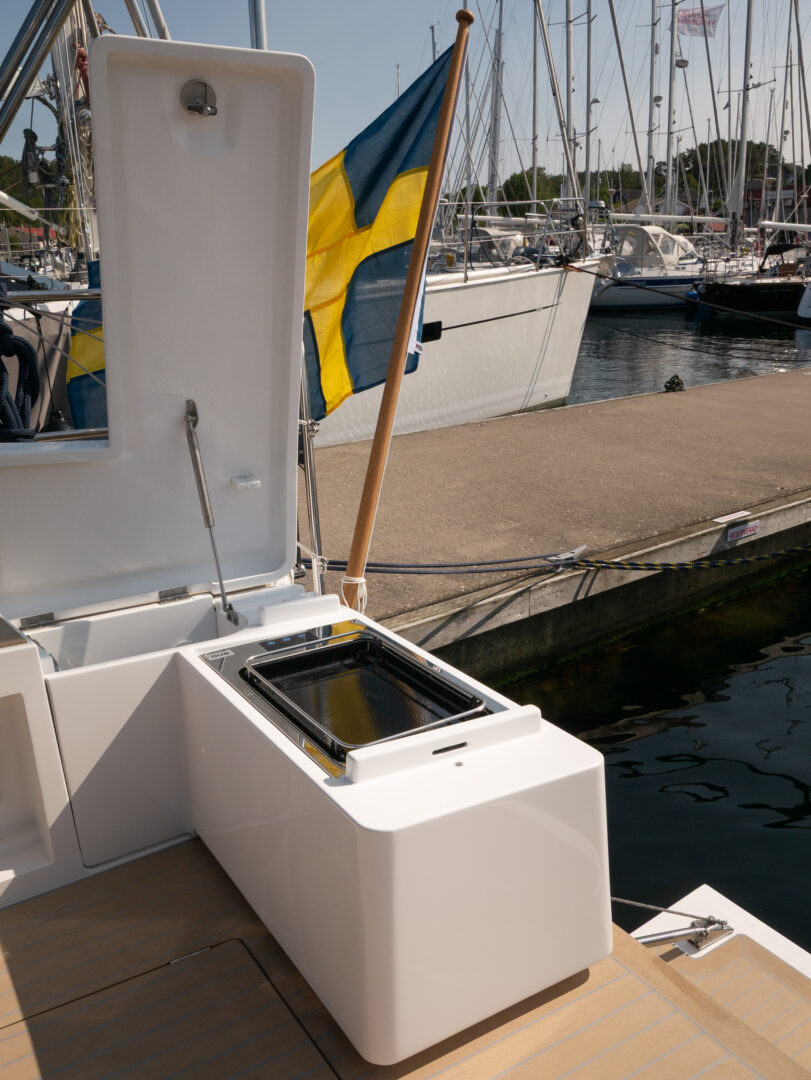

Also new to Arcona are the L-shaped cockpit benches and the two cockpit tables, which improve functionality and enable guests and crew to move around the cockpit more easily under sail. Liferaft locker recessed into the cockpit floor, halyard and sheet lockers under the side decks in front of the helmsman. Aft coaming lockers to hide the yacht’s gas bottles and shore power socket.

REAL SAILING – YOUR WAY

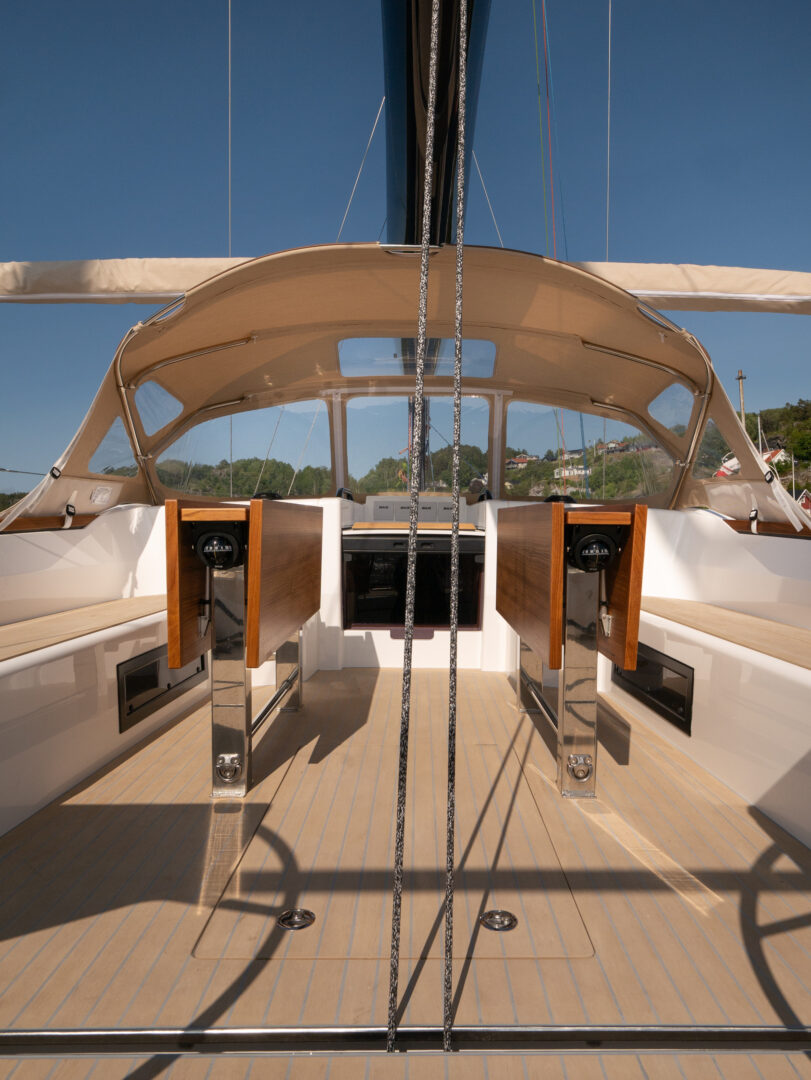

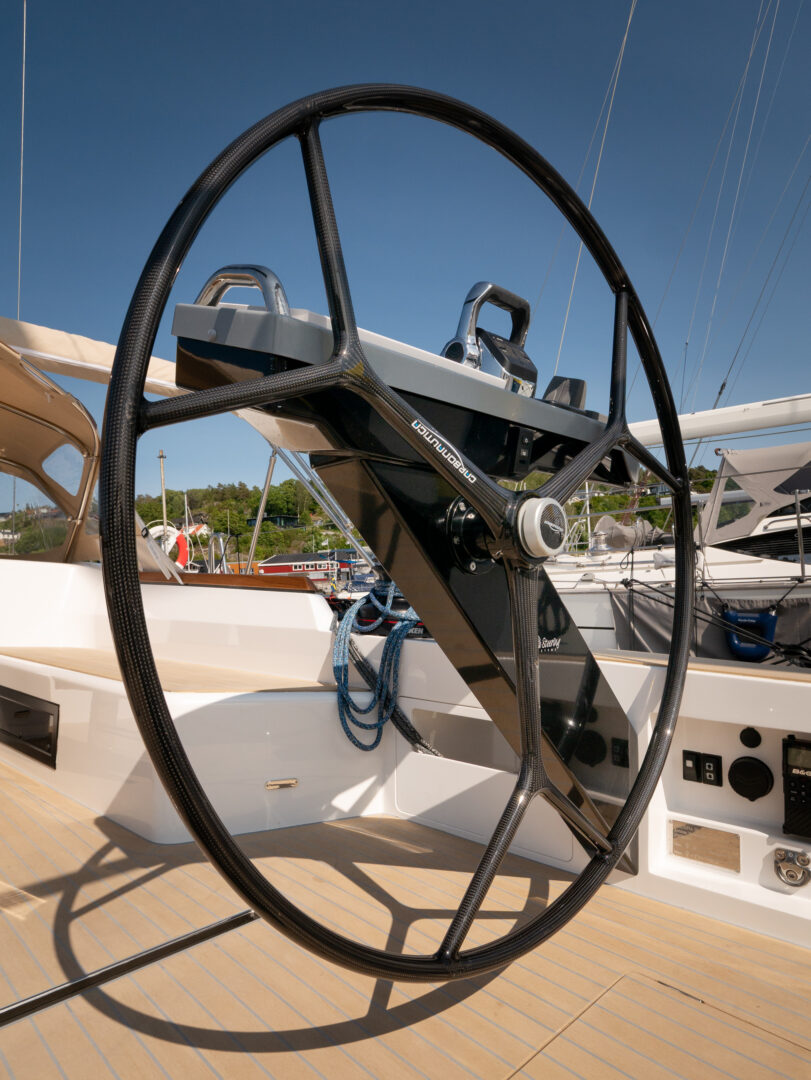

The Arcona 50 has twin wheels as standard, and the cockpit layout and the sail handling systems are set up for shorthanded sailing and ease of use.

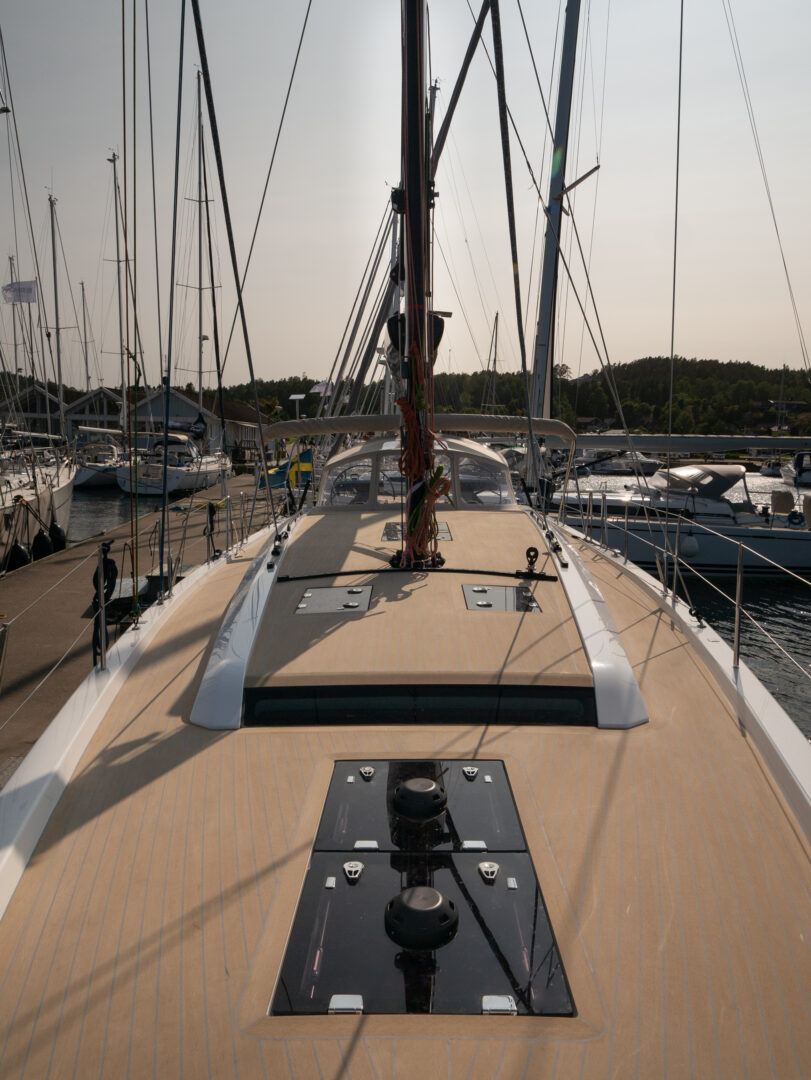

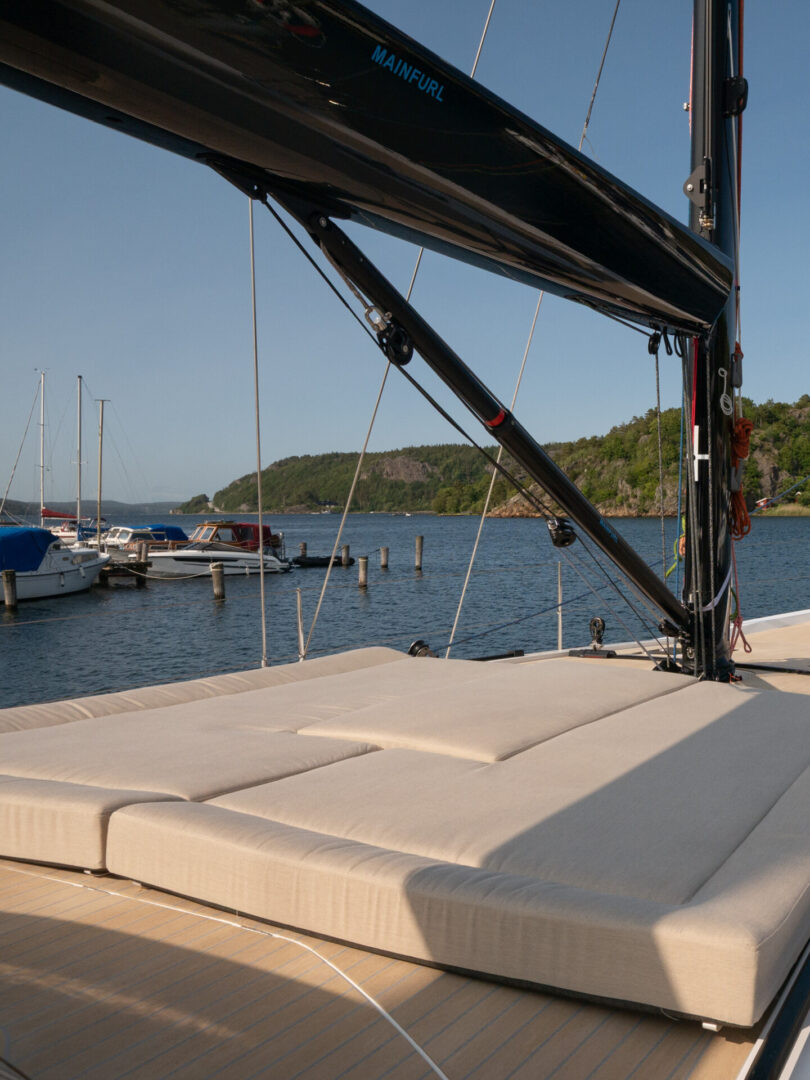

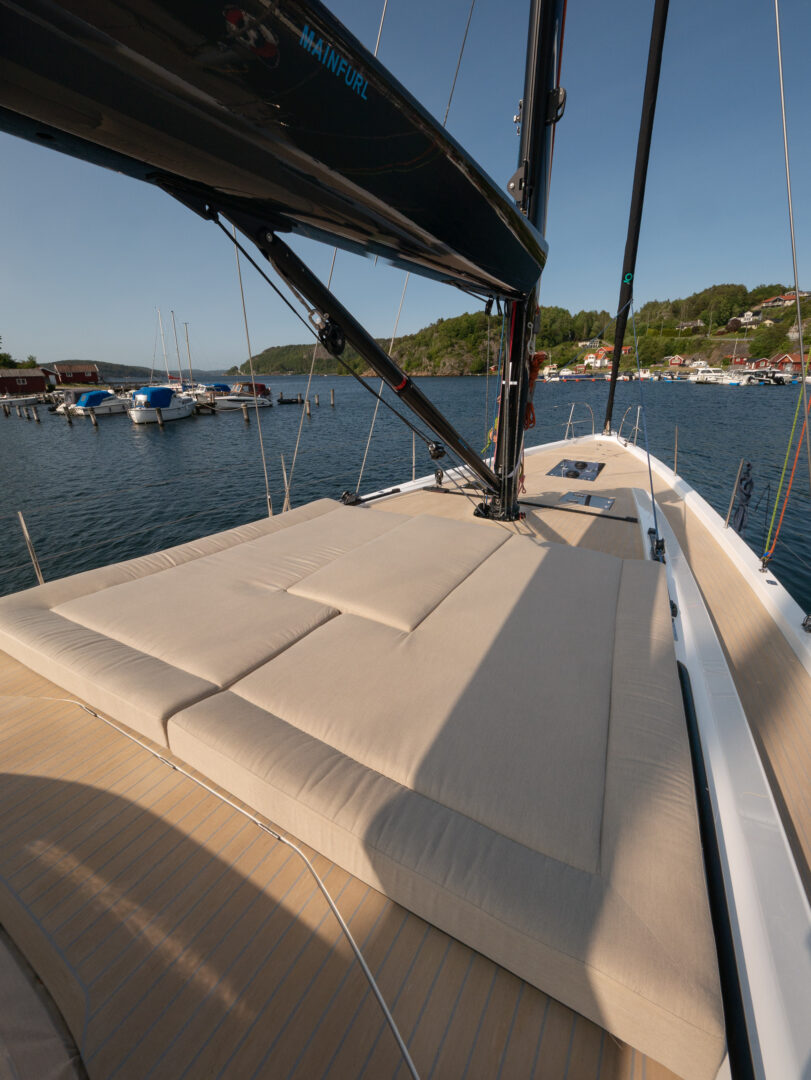

She has a three-spreader mast with discontinuous rod rigging plus double hydraulic backstay cylinders with a central pumpstation. A carbon mast and furling carbon boom is available as an upgrade. There is an optional inner forestay to attach a furling heavy weather jib for ocean passages. There is also the option for a bowsprit for easily controllable use of asymmetric sails.

The central single mainsheet block is recessed below the cockpit floor. The yacht is available with an electrically operated mainsheet traveller track, also recessed below the cockpit floor, as an upgrade.

Next to the winches, there are dedicated lockers for halyards and sheets enabling the cockpit to be ‘clean’.

Under power, an standard 80hp or optional 100Hp common rail engine propels a folding propeller, keeping vibrations and noise to a minimum. Optional retractable thrusters will secure maximum manoeuvrability in narrow marinas.

SCANDINAVIAN ELEGANCE BELOW DECK

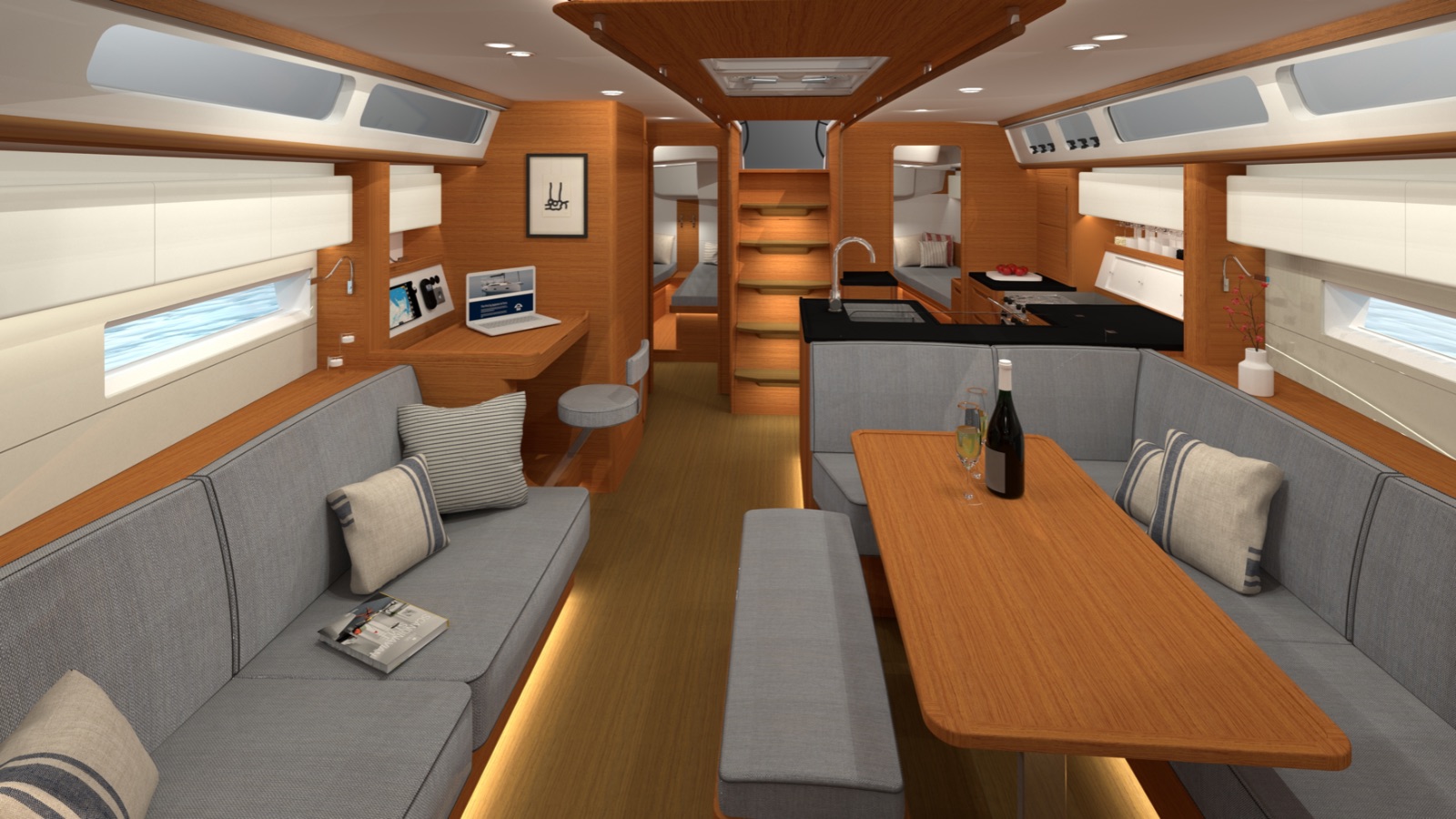

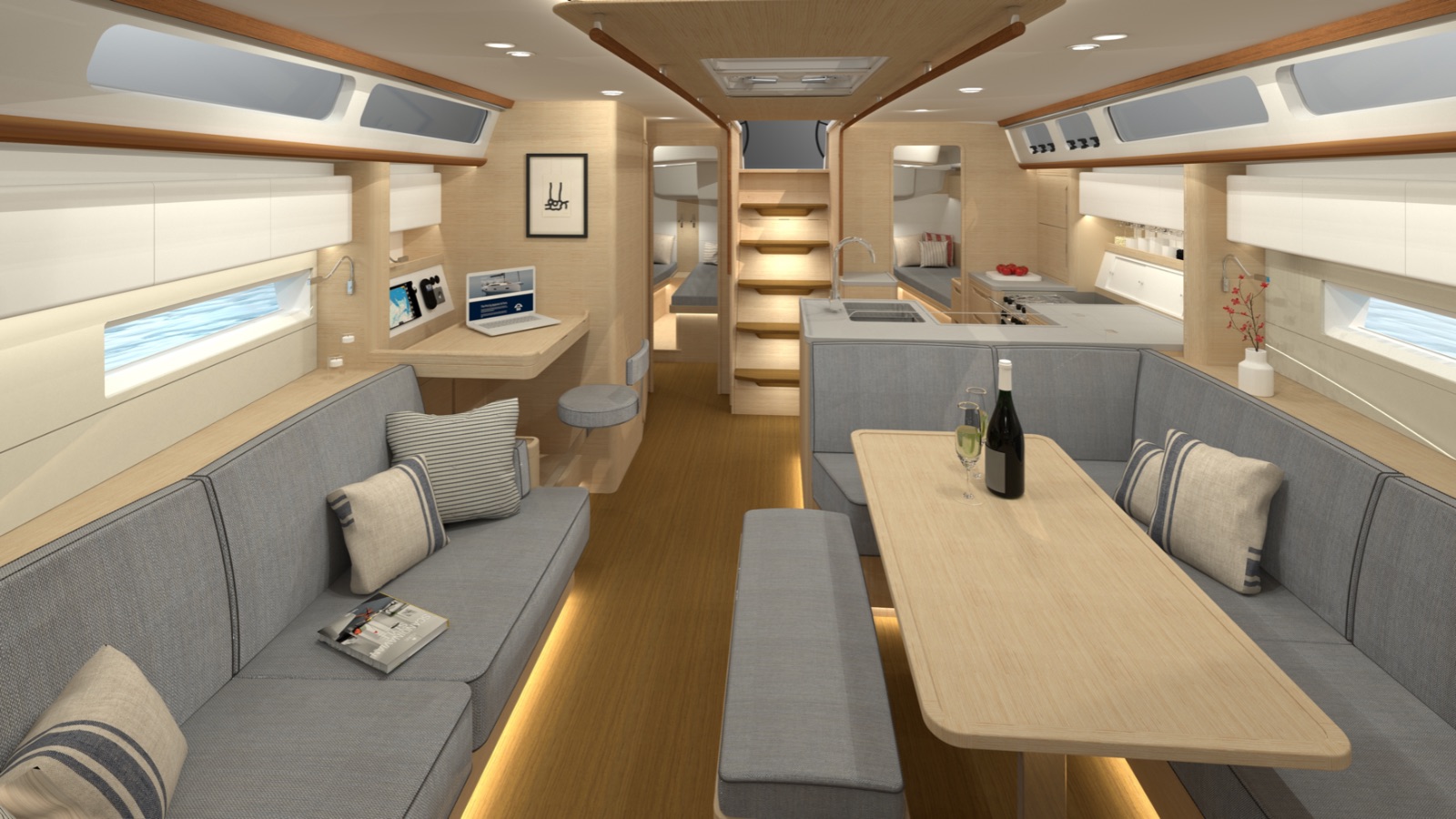

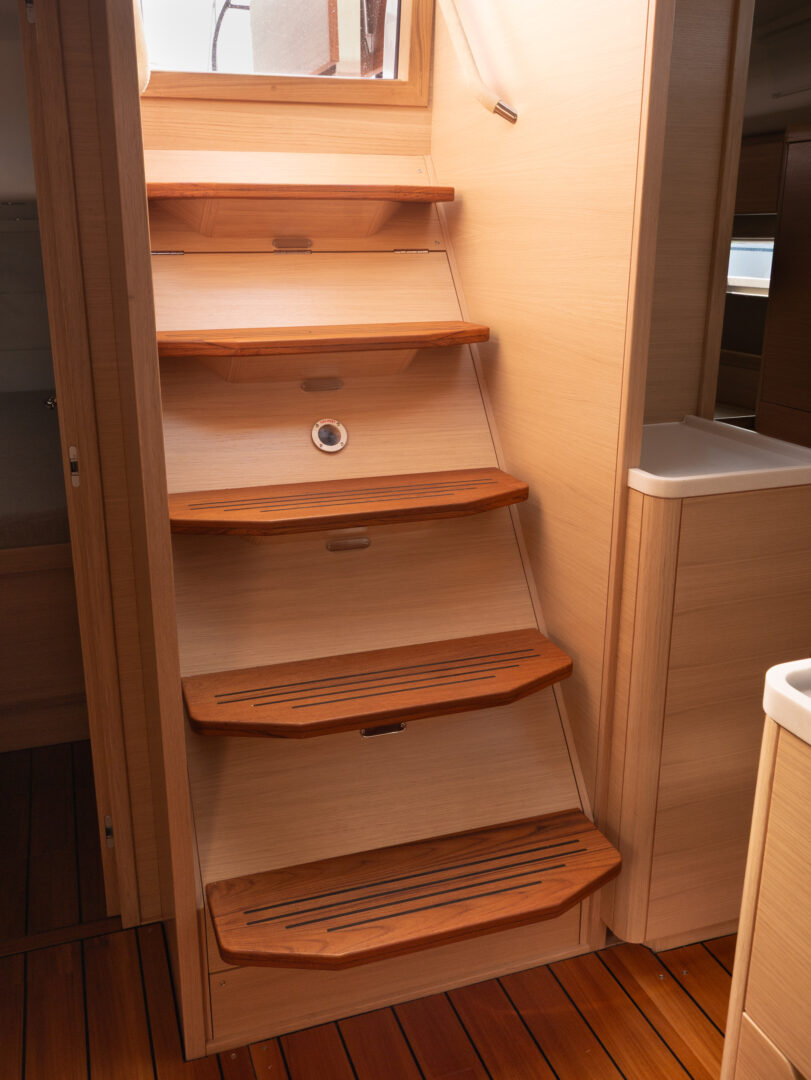

Below deck minimalist Scandinavian elegance permeates every detail. The interior is made in Khaya Mahogany and can be upgraded to Scandinavian Light Oak. As seen in superyachts, but new to Arcona, the woodwork is cored to maximise weight-saving without compromising on the aesthetics.

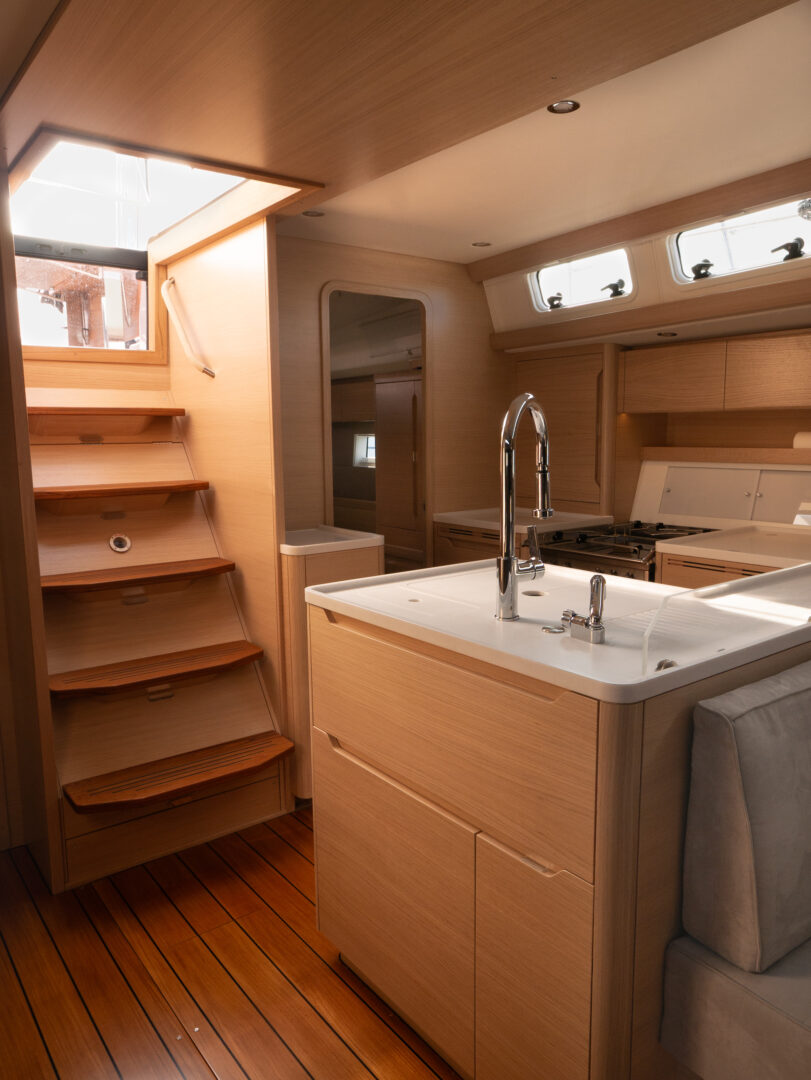

The galley has lots of practical stowage, a gimballed cooker with oven and a generously-sized sink and fridge. The galley layout enables easy access to the L-shaped saloon seating. There is the option to choose an alternative layout with U-shaped seating and an additional worktop space.

The saloon table has an additional seat to starboard that can be moved and locked into position.

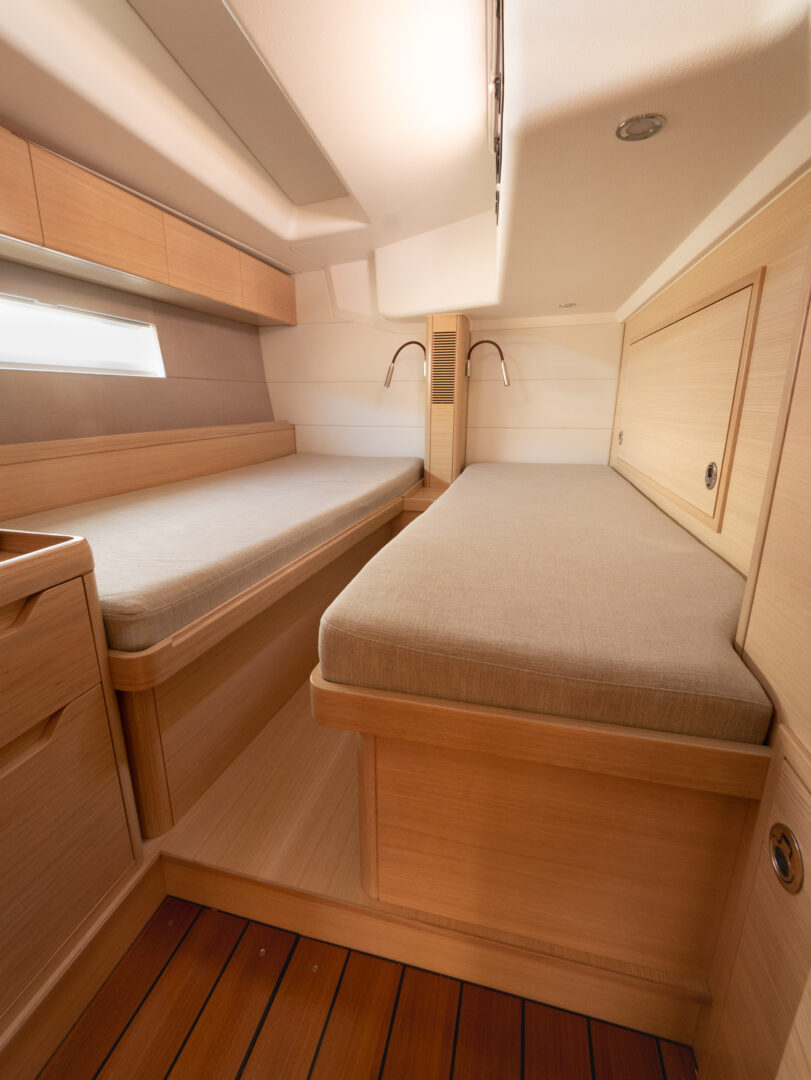

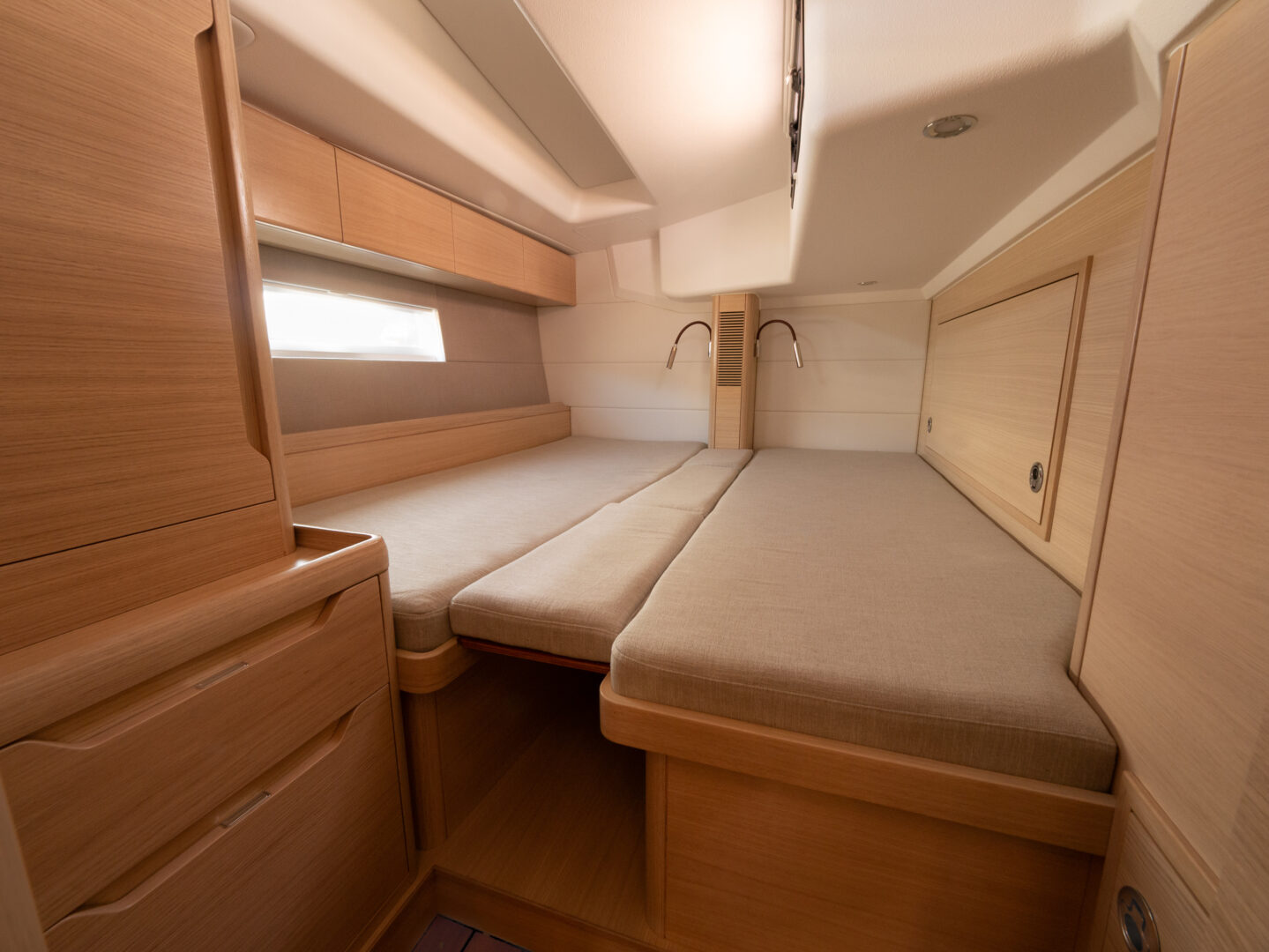

The owners’ cabin features a Kingsize bed, lots of storage and an en-suite with a separate shower. For guests, there is an additional heads with a separate shower area. The two aft cabins have double berths as standard and can be upgraded to a convertible twin berth configuration.

Lots of natural light flows from the large hull windows and flush hatches which creates the feeling of more space. Arcona offers a broad range of cushion fabrics and colour options for you to choose from to personalise your Arcona.

SWEDISH BUILD QUALITY

Like all boats in the Arcona fleet, the Arcona 50 reflects the quality expected from Swedish boatbuilders, using the best materials, techniques and trusted handpicked suppliers. Hull, deck and internal structure will be made of vacuum infused Divinycell cored GRP with strategic important areas reinforced with carbon. This carbon reinforcements are useful for both strength and weight-saving. As with all Arcona yachts, the Arcona 50 also features a galvanised steel keel frame.

Blending Scandinavian yacht design expertise with Swedish boatbuilding craftsmanship is an exciting combination for this new Arcona flagship.

Please note: The images featured may show optional features and equipment that are not included in the standard specification.

Specifications

Main Data

Design
Jeppesen & Pons
RCD Category
A-Ocean
Length overall including optional bowsprit
15.8 m
Hull Length
14.99 m
Length waterline
13.98 m
Beam
4.60 m
Draft - Deep keel standard (standard/racing/shallow)
2.95m/2.5m/2.2m
Displacement (Light boat, no extra equipment)
13900/14500/15300kg
Ballast
4600/5200/6000kg
Max Air Draft excl. VHF Antenna
24.00 m
Engine
Yanmar 4JH80CR /Sail Drive SD60
Fuel Tanks (total)
375 Litres
Water Capacity
500 Litres
Holding Tank
52 + 52 Litres
Hot Water
40 Litres

Sails & Rig dimensions

Main Sail
86m2
Self-tacking Jib
56m2
Overlapping Jib 110% (Option)
65m2
Asymmetric Spinnaker
222m2
I
21.00m
J
5.74m
P
20.10m
E
6.85m

Drawings
