Arcona 415

The Arcona 415 is one of the first series produced sailing yachts with electric propulsion as standard.

Electric propulsion is already available across all the Arcona fleet as an upgrade option and Arcona Yachts is proud to have the largest fleet of electric ‘zero emissions’ yachts on the water, the first being the Arcona 380Z launched in 2015.

Arcona performance cruisers will always sail beautifully but in light winds, when you need to use the engine, electric propulsion is the way forward. The sleek and light hull design works extremely well with electric propulsion. Comfort, performance and zero emissions if you need to use the engine, what more could you ask for from your yacht.

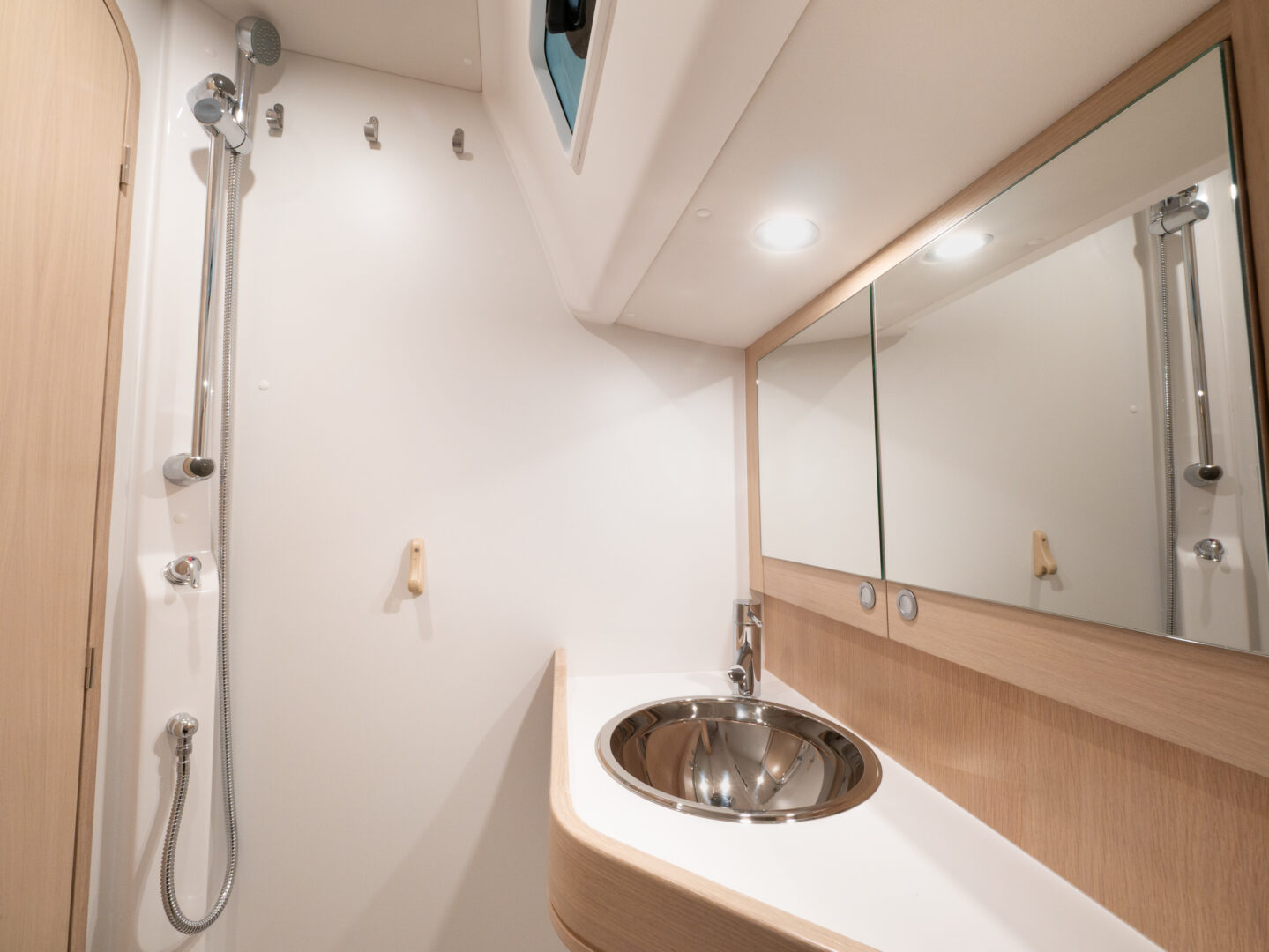

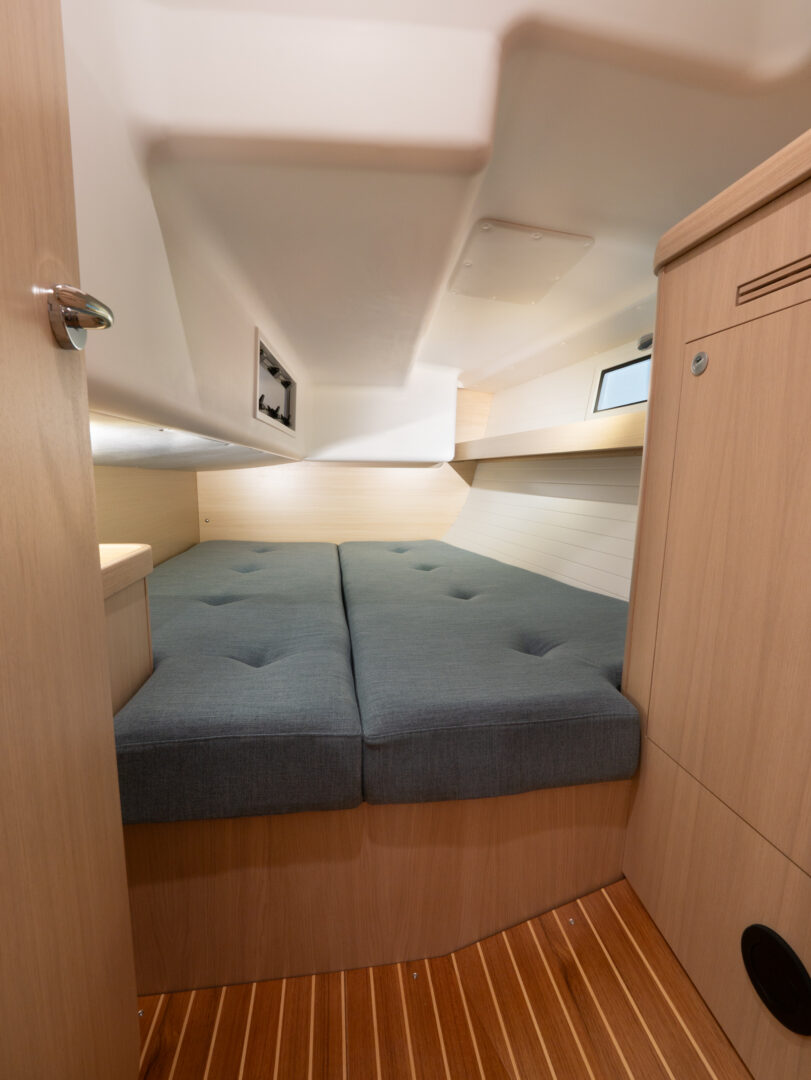

In response to customer demand, the Arcona 415 has the option of a three or two cabin version with an additional en suite in the owner´s cabin.

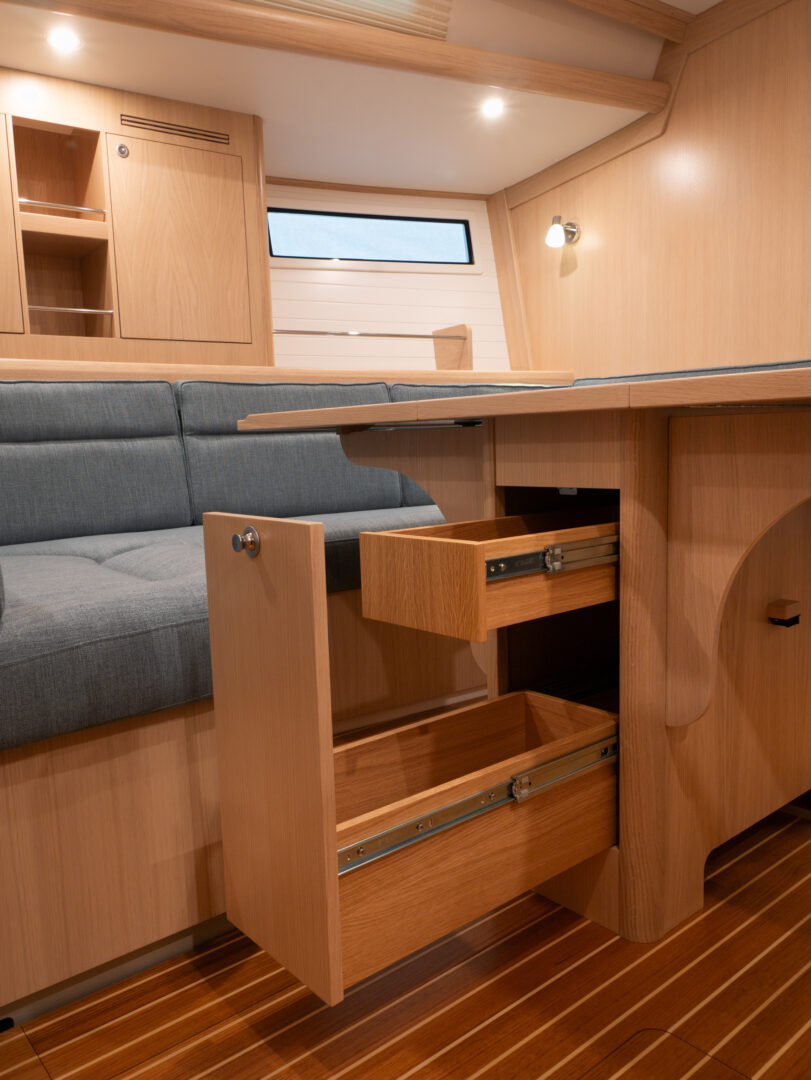

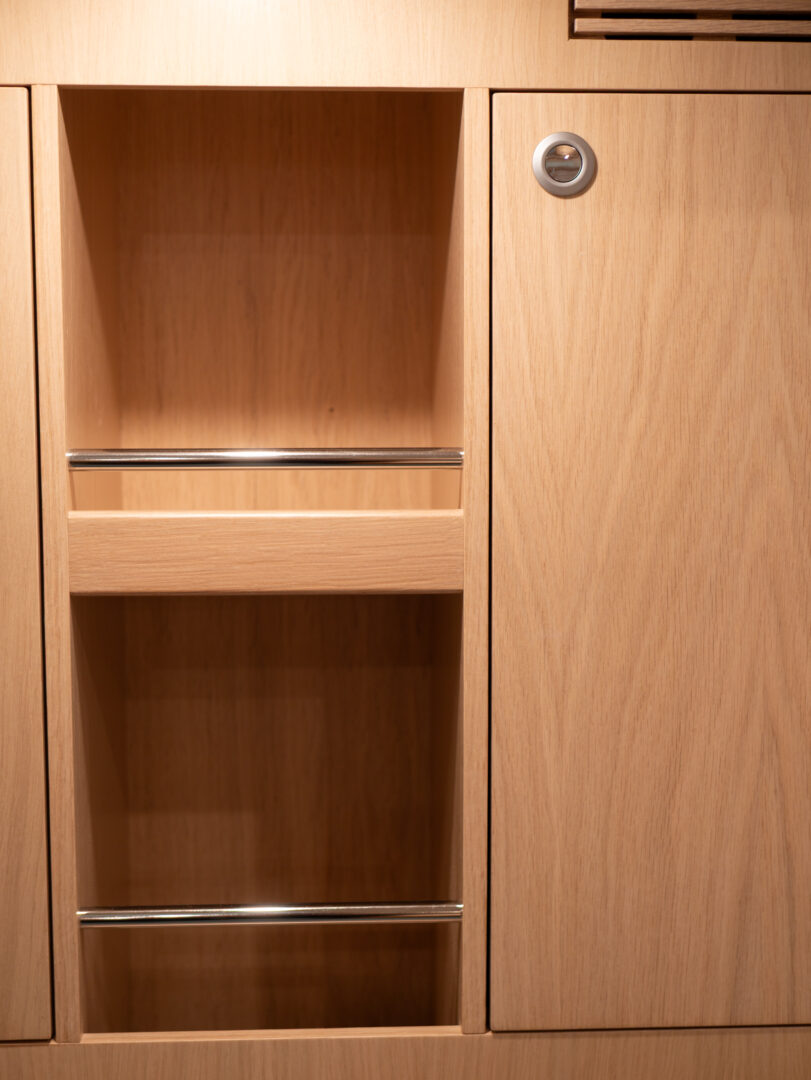

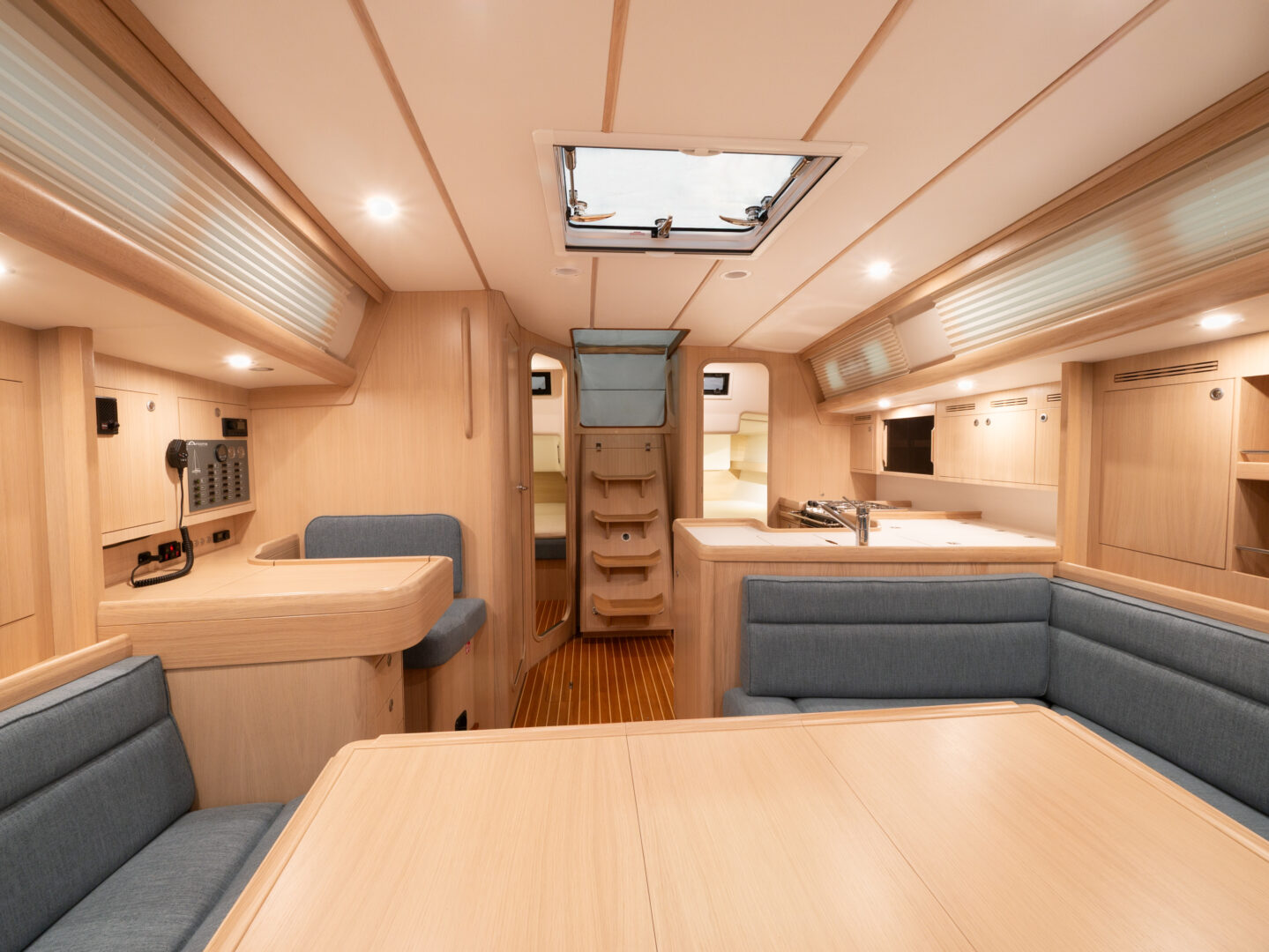

The Arcona 415, with her beautiful lines, modern hull shape, open transom, more accessible stowage space and increased light, continues the tradition of Arcona 410 as a quality performance cruiser, built with superb attention to detail, as always. In terms of power, the Arcona 415 is equipped with an Oceanvolt Servoprop 15kW electric propulsion system, with variable pitch propeller technology. It has a 19kWh battery pack as standard. A 15kW electric motor is the equivalent of a 50hp diesel engine on our 40-43ft yachts.

For the propulsion system we are proud to work with Oceanvolt, who represent the world’s absolute top companies when it comes to design and manufacturing of electric motor systems. The lightweight system uses hydro regeneration via the propeller to regenerate power whilst sailing, storing it in the propulsion battery pack for later use. Regeneration depends on sailing speed, however our customers have seen the hydro regeneration commence when the yacht is sailing at a speed as low as 3.3knots.

The benefits of electric propulsion are numerous; not having an exhaust and the elimination therefore of emissions, the ongoing cost saving vs. fuelling up with diesel, the minimised operating noise and vibrations, the increased space for living, the complete power management, the ease of use and maintenance, and having an overall lighter weight thus increased performance.

Contact info@arconayachts.se for further information on this new Arcona model.

Download brochure

Specifications

Download brochure

MAIN DATA

Design
Stefan Qviberg/Arcona Design Team
Length overall
12.20 m
Length waterline
11.20 m
Beam
3.90 m
Draught (shallow/standard/racing)
2.00/2.20/2.50 m
Displacement
7800 kg
Mast Height
19.80 m
Motor
Oceanvolt 15kW motor
Sail Drive
Servoprop 15
Water Capacity
230 l
Hot Water
25 l
Holding Tank:
75 l
Main
57 m2
Jib 107%
45 m2
Spinnaker
148 m2
Gennaker
132 m2
I
16.60 m
J
4.55 m
E
5.85 m
P
16.20 m
LP
4.92 m (107%).
CE category
A-Ocean

Drawings
